產品介紹

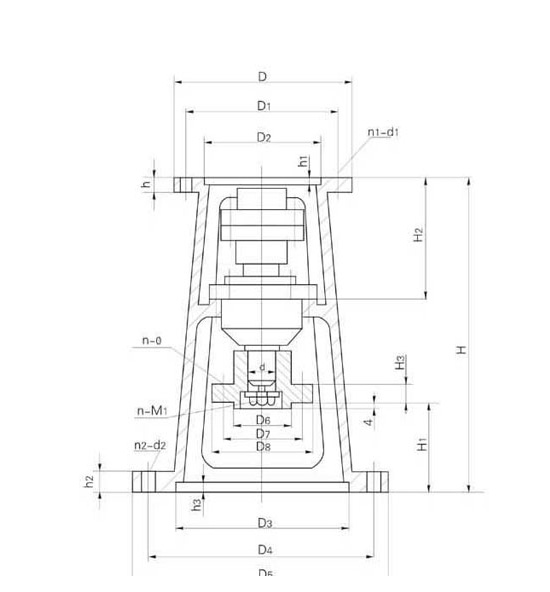

TJ型機架、下裝JA型聯軸器，主要參數及尺寸
機架型號
減速機型號
輸入端接口
輸出端接口
H
H1
H2
H3
d
D6
D7
D8
n-φ
n-M1
D
D1
D2
h
h1
n1-d1
D3
D4
D5
h2
h3
n2-d2
TJ1
B1
230
200
170
20
6
6-12
220
270
305
22
7
4-24
514
201
185
15
35
60
110
140
4-13.5
1-10
TJ2
B1
230
200
170
20
6
6-12
250
300
335
22
7
4-24
517
197
190
15
35
60
110
140
4-13.5
1-10
TJ2
B2
260
230
200
20
7
6-13
250
300
335
25
7
4-24
530
176
210
20
45
85
120
160
4-13.5
1-12
TJ3
B2
260
230
200
20
7
6-13
295
350
392
26
7
4-26
560
206
210
20
45
85
120
160
4-13.5
1-12
TJ3
B3
340
310
270
20
7
6-13
295
350
392
26
7
4-26
560
191
210
20
45
85
120
160
4-13.5
1-12
TJ4
B3
340
310
270
20
7
6-13
345
400
442
26
7
4-26
675
245
250
22
55
100
150
180
4-18
1-16
TJ5
B3
340
310
270
22
7
6-13
390
450
498
26
7
4-30
680
250
250
22
55
100
150
180
4-18
1-16
TJ6
B4
400
360
320
316
22
7
8-16
435
500
548
30
7
8-30
736
276
250
28
70
110
165
200
4-18
1-16
TJ7
B5
490
450
400
26
10
12-18
440
550
600
30
10
12-22
805
261
296
36
90
150
190
230
6-18
2-12
TJ8
B6
580
520
460
28
10
12-22
500
550
600
32
10
12-22
820
209
362
36
100
140
200
240
6-18
2-16
TJ9
B7
650
590
520
30
12
12-22
560
650
700
40
10
12-27
955
204
420
36
110
150
250
290
6-27
3-16
TJ10
B8
880
800
680
45
12
12-38
720
810
880
45
10
20-27
1200
304
550
40
130
180
290
350
8-27
3-16
TJ型機架、下裝JA型聯軸器，主要參數及尺寸
| 機架型號 | 減速機型號 | 輸入端接口 | 輸出端接口 | H | H1 | H2 | H3 | d | D6 | D7 | D8 | n-φ | n-M1 | ||||||||||
| D | D1 | D2 | h | h1 | n1-d1 | D3 | D4 | D5 | h2 | h3 | n2-d2 | ||||||||||||
| TJ1 | B1 | 230 | 200 | 170 | 20 | 6 | 6-12 | 220 | 270 | 305 | 22 | 7 | 4-24 | 514 | 201 | 185 | 15 | 35 | 60 | 110 | 140 | 4-13.5 | 1-10 |
| TJ2 | B1 | 230 | 200 | 170 | 20 | 6 | 6-12 | 250 | 300 | 335 | 22 | 7 | 4-24 | 517 | 197 | 190 | 15 | 35 | 60 | 110 | 140 | 4-13.5 | 1-10 |
| TJ2 | B2 | 260 | 230 | 200 | 20 | 7 | 6-13 | 250 | 300 | 335 | 25 | 7 | 4-24 | 530 | 176 | 210 | 20 | 45 | 85 | 120 | 160 | 4-13.5 | 1-12 |
| TJ3 | B2 | 260 | 230 | 200 | 20 | 7 | 6-13 | 295 | 350 | 392 | 26 | 7 | 4-26 | 560 | 206 | 210 | 20 | 45 | 85 | 120 | 160 | 4-13.5 | 1-12 |
| TJ3 | B3 | 340 | 310 | 270 | 20 | 7 | 6-13 | 295 | 350 | 392 | 26 | 7 | 4-26 | 560 | 191 | 210 | 20 | 45 | 85 | 120 | 160 | 4-13.5 | 1-12 |
| TJ4 | B3 | 340 | 310 | 270 | 20 | 7 | 6-13 | 345 | 400 | 442 | 26 | 7 | 4-26 | 675 | 245 | 250 | 22 | 55 | 100 | 150 | 180 | 4-18 | 1-16 |
| TJ5 | B3 | 340 | 310 | 270 | 22 | 7 | 6-13 | 390 | 450 | 498 | 26 | 7 | 4-30 | 680 | 250 | 250 | 22 | 55 | 100 | 150 | 180 | 4-18 | 1-16 |
| TJ6 | B4 | 400 | 360 | 320 316 |
22 | 7 | 8-16 | 435 | 500 | 548 | 30 | 7 | 8-30 | 736 | 276 | 250 | 28 | 70 | 110 | 165 | 200 | 4-18 | 1-16 |
| TJ7 | B5 | 490 | 450 | 400 | 26 | 10 | 12-18 | 440 | 550 | 600 | 30 | 10 | 12-22 | 805 | 261 | 296 | 36 | 90 | 150 | 190 | 230 | 6-18 | 2-12 |
| TJ8 | B6 | 580 | 520 | 460 | 28 | 10 | 12-22 | 500 | 550 | 600 | 32 | 10 | 12-22 | 820 | 209 | 362 | 36 | 100 | 140 | 200 | 240 | 6-18 | 2-16 |
| TJ9 | B7 | 650 | 590 | 520 | 30 | 12 | 12-22 | 560 | 650 | 700 | 40 | 10 | 12-27 | 955 | 204 | 420 | 36 | 110 | 150 | 250 | 290 | 6-27 | 3-16 |
| TJ10 | B8 | 880 | 800 | 680 | 45 | 12 | 12-38 | 720 | 810 | 880 | 45 | 10 | 20-27 | 1200 | 304 | 550 | 40 | 130 | 180 | 290 | 350 | 8-27 | 3-16 |
